SL1571

SL1571

DC-DC升压IC

型号:SL1571
封装:SOT23-6L
输入范围:2.6V-5.5V
输出电压:16V
输出电流:3A
工作频率:800kHz
立即询价

SL1571

3A High Efficlency 800KHz Step-Up Converter


DESCRIPTION

The SL1571 is a high-power density, asynchronous boost

converter with a 120mΩ power switch to provide a high

efficiency and small size solution in portable systems. The

SL1571 has input voltage range from 2.6 V to 5.5 V to

support applications with different power supply. The device

has 3A switch current capability and can provide an output

voltage up to 16V.

The SL1571 also implements a soft-start function and an

adjustable switching peak current limit function.

In addition, the device provides 20V output overvoltage

protection, and thermal shutdown protection.


FEATURES

・Input voltage range: 2.6V to 5.5V

・Output voltage range: up to 16V

・Programmable switch peak current limit: up to 3A

・0.1μA current consumption during shutdown

・Programmable soft start

・Output overvoltage protection (at 20V), thermal

shutdown protection

・Pb-free Packages,SOT23-6L


APPLICATIONS

・Chargers ・LCD Displays

・Digital Cameras ・Handheld Devices

・Portable Products

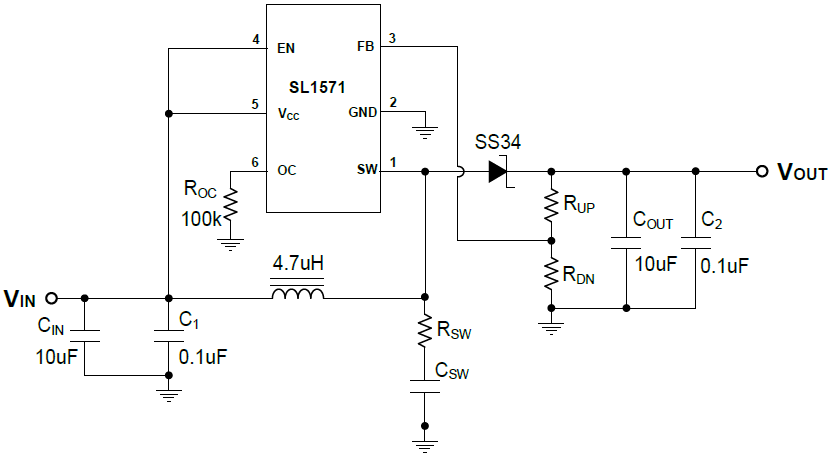

TYPICAL APPLICATION
